V-RAPTOR XL 8K VV (V-Lock)

トップ
RED V-RAPTOR
RED V-RAPTOR
V-RAPTOR XL 8K VV (V-Lock)

RED DIGITAL CINEMA

V-RAPTOR XL 8K VV (V-Lock)

RED-9141・MFR#710-0346

価格には諸経費5万円(税抜)を含んでいます。

セール期間：2023年04月01日10時00分～ 2023年04月30日23時59分まで

セール期間：2023年4月26日12時00分～ 2023年5月5日23時59分まで

2022年9月19日(月・祝) 10時〜 9月26日(月) 23時59分まで

通常価格￥7,106,000 （税抜）を、数量限定価格にて販売

なくなり次第、通常価格となります。

なくなり次第、販売終了となります。

￥7,816,600

(税抜￥7,106,000 )

数量

カートに入れる

お問い合わせ

『RED V-RAPTOR』に関するお問合わせ

Rental How to register
レンタルご利用について

商品の納期について

※弊社取り扱いの製品は、製品確認のため一度開梱されています。

※商品ページのシステムの都合上、カート決済画面で注文内容を確定される直前に完売となる場合があり、その際は商品をお届けできません。
（ご注文結果は別途ご連絡いたします。）

※ご購入の前に「shop@raid-japan.co.jp」が受信可能かどうかの確認をお願いいたします。
　ご購入後に購入内容や支払い方法、発送案内等の重要なお知らせをメールにて送信しております。

▼ DETAIL を見る

※ RED カメラの国内サポート業務（メンテナンス含む）は、当社並びに当社代理店からご購入いただきました商品のみとなります。海外購入・他の代理店経由で購入されたカメラのサポートは、メーカー確認の上の対応となりますのでお問合せください。

V-RAPTOR XL 8K VV

V-RAPTOR^™ 8K S35 本体ご購入で、

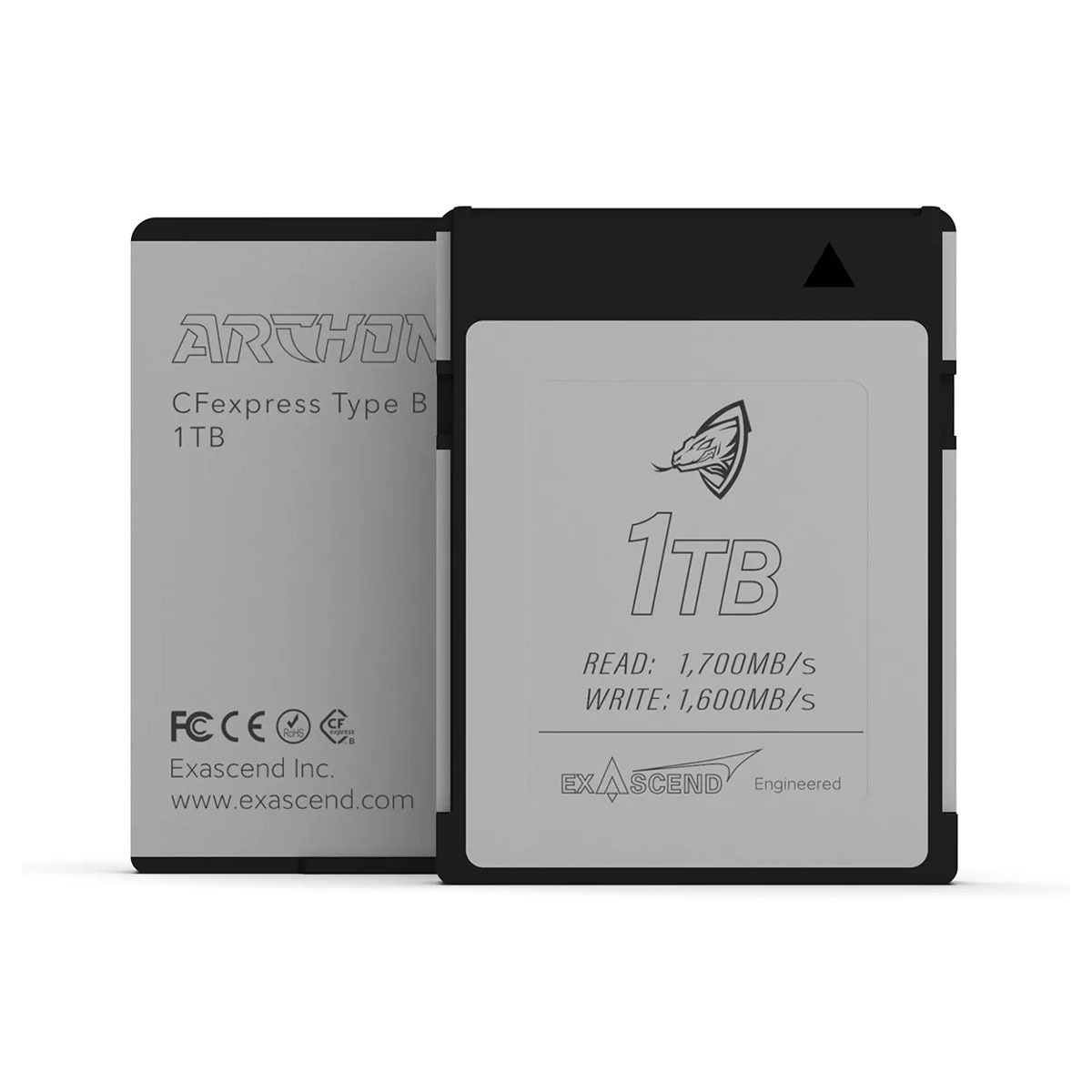

"CFexpress RED Archon 1TB" 1つプレゼント!!
2023年6月30日(金)まで!!

Multi-Format
8K VV + 6K S35 Sensor
Purpose-Built
Unified body
Industry Standard
Integrated I/O Array
Robust Professional
Interchangeable Lens Mount

All-New Integrated
Electronic ND System
Powerful & Versatile
12V and 24V Outputs
Remote-Production Ready
WIRELESS TIMECODE & GENLOCK
Power Options
V-Lock & Gold Mount

DETAIL

仕様関連商品

V-RAPTOR XL 8K VV

SENSOR SPECS
SENSOR	V-RAPTORTM 8K VV 35.4 Megapixel CMOS
EFFECTIVE PIXELS	8192 (h) x 4320 (v)
SENSOR SIZE	40.96 mm x 21.60 mm (Diagonal: 46.31 mm)
DYNAMIC RANGE	17+ stops
KEY FEATURES
BUILT-IN ND	Motorized clear filter and precision controlled electronic ND filter Electronic ND minimum density 2 stops, maximum density 7 stops Electronic ND selectable increments of 1/3 stops, 1/4 stops, and 1 stop
MOUNT TYPE	Interchangeable lens mount, included V-RAPTOR XL PL Mount (shimmable) Optional V-RAPTOR XL Locking Canon EF Mount Physically compatible with DSMC Lens Mounts, but does not provide electronic communication or control
BATTERY TYPE	Integrated Dual Voltage 14/26V V-Lock battery interface \| Integrated Dual Voltage 14/26V Gold Mount battery interface
RECORDING
MAX DATA RATES	Up to 800 MB/s using RED branded or other qualified CFexpress media cards1
REDCODE® RAW MAX FRAME RATES	120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456) 140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024) 160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592) 192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160) 240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728) 320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296) 480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)
PLAYBACK FRAME RATES (PROJECT TIME BASE)	23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions
BEST AVAILABLE REDCODE® SETTINGS	REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps
REDCODE® RAW ACQUISITION FORMATS	8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x 7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x 6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x 5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1 4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1 3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1 2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1
Apple ProRes	Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT with resolutions up to 4K (4096x2160) Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080)
GENERAL
CONSTRUCTION	Aluminum Alloy
WEIGHT	7.99lbs (with PL Mount, V-Lock) 8.08lbs (with PL Mount, Gold Mount)
DC POWER INPUT	19.5-34 V via 4-pin 2B DC-IN
OPERATING TEMPERATURE	0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE	-20°C to 50° C (-4°F to 122°F)
STORAGE RELATIVE HUMIDITY	0% to 85% non-condensing
ADDITIONAL FEATURES
COLOR MANAGEMENT	Image Processing Pipeline (IPP2) Supports 33x33x33 3D LUTs Supports import of CDLs
AUDIO	Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz
AUTOFOCUS	Contrast and Phase Detect
REMOTE CONTROL	Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing remote camera control, live MJPEG preview video feed and remote media offload
POWER OUTPUTS²	Regulated 12 V Outputs 2x P-TAP Connectors (3AMP Combined) 1x Rear 2-Pin 0B (3 AMP) 1x Rear 2-Pin 0B (1.5 AMP) 1x Front 2-Pin 0B (1 AMP) Regulated 24 V Connectors 2x Front 3-Pin Fischer (3 AMP Combined)
MONITOR OUTPUTS	Proprietary top accessory port for monitoring and control 3x 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes (SDI 1/2/3) 1x 3G-SDI with 3G-SDI and 1.5G-SDI modes (EVF) 12G-SDI: Up to 4096 x 2160 4:2:2 for 60p 6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p 3G-SDI: Up to 2048 x 1080 4:2:2 for 60p 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
MONITOR OPTIONS	DSMC3 RED® Touch 7.0” LCD IP streamed 1080p live preview wirelessly or wired via USB-C or Ethernet Integrated 2.4” LCD for camera control (no preview video)
CAMERA SYNC OPTIONS	Tri-Level Genlock through BNC Linear Timecode (LTC) through 5-Pin 0B PTP through 9-Pin 0B GIG-E Wireless Genlock and Timecode through Integrated Ambient Communication Network (ACN)
SOFTWARE
RED CONTROL	Access full camera controls and live preview from iOS or Android devices. Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C or Ethernet

Tech specs reflect both current and projected information. Everything is subject to change.

1. For more information on compatible accessories, go to RED.com/third-party-accessories
2. High voltage power source required.
